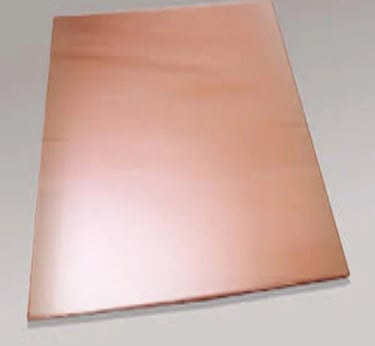

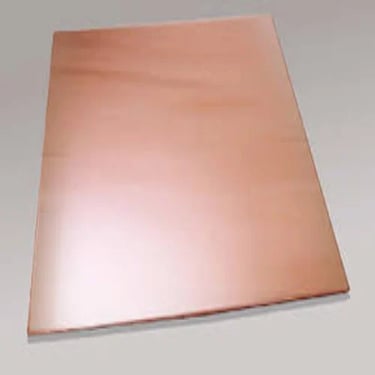

COPPER BONDED EARTH PLATE

A copper bonded earth plate, also known as a copper-bonded grounding plate, is a component used in electrical grounding systems. It consists of a solid copper plate that is bonded or attached to a steel core.

The purpose of a copper bonded earth plate is to provide a low-resistance path for the dissipation of electrical currents into the ground. Grounding systems are essential in electrical installations to ensure safety, protect equipment from damage, and minimize the risk of electrical faults.

The copper bonding on the earth plate enhances its conductivity and corrosion resistance. The steel core provides mechanical strength and stability. The combination of copper and steel allows for efficient grounding while maintaining durability and longevity.

When installing a copper bonded earth plate, it is important to ensure proper grounding practices are followed. The plate is typically buried in the ground, connected to the electrical system's grounding conductor, and bonded to other grounding components such as rods or conductive grids. This helps to create a comprehensive grounding network that can effectively handle fault currents.

Overall, copper bonded earth plates are commonly used in various electrical applications, including residential, commercial, and industrial settings, to establish reliable grounding systems and promote electrical safety.
